NEW COMMERCIAL OFF-THE-SHELF SYSTEMS (COTS)
UVS Pumping & Treatment Systems
RainHarvest Systems’ RainFlo UVS COTS water reuse systems are preconfigured for quick design integration with complete product documentation and fast delivery all at an exceptional value. These user-centered solutions are built with a smaller footprint and focus on the most essential functions in a streamlined design. The cost effective UVS systems are easy to design in, easy to install, and easy to use.
Mini, Mid, and Max:
• Tank level sensor
• Supplemental feed valve control
• Pre filter rinse valve control
• Tank drain valve control
• Incoming water supply valve
status
• 3-way valve control
• Energy saving UV flowmeter
(UVS-Mini/Mid only)

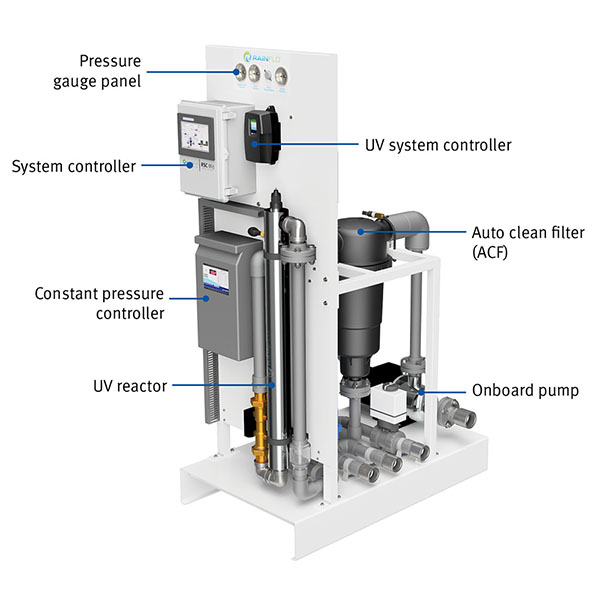

Mid and Max only:
• Pump pressure
• Second tank level control
• Filter differential pressure
monitoring
• ACF flush valve control
• ACF flush valve status
• Ozone (UVS-Max only)
| KEY FEATURES & FUNCTIONS | RF UVS-Mini-FI/P | RF UVS-Mid-FI/P | RF UVS-Max-FI/P |
| Frame | Aluminum, powder coated - 72” H x 26.5” W X 45” D | ||
| Input power (Onboard pump) | 230VAC single phase 40A, 120VAC @ 10A | 230VAC single phase 40A, 120VAC @ 10A | 230VAC three phase 30A, 120VAC @ 10A |
| Input power (FI) | 230VAC single phase 20A, 120VAC @ 10A | 230VAC single phase 30A, 120VAC @ 10A | 230VAC single phase 50A, 120VAC @ 10A |
| Inlet (Onboard pump) | 1” FNPT | 1.5” FNPT | 2” FNPT |
| System inlet/Pump outlet (FI) | 1.5” FNPT/1.5” FNPT | 2” FNPT/2” FNPT | 2” FNPT/2” FNPT |
| Bladder tank capacity | 9.5 gal | 13.2 gal | 13.2 gal |
| GPM | 25 | 40 | 60 |
| Constant pressure controller | Variable frequency drive (VFD) increases or reduces pump speed based on demand | ||
| Filters | 37107 - 20 μm cartridge 37084 - 5 μm cartridge | Auto Clean Filter (ACF) - 10 μm | Auto Clean Filter (ACF) - 10 μm |
| UV controller | Digital power meter with UV intensity sensor | - | |
| UV lamp life | Up to 10,000 hours of continuous operation | - | |
| System controller | RSC Mini - 4”/480x272 | RSC Mid - 7”/800x480 | RSC Mid - 7”/800x480 |
| Tank level sensor | • | • | • |
| Energy saving UV flowmeter | • | • | • |
| Supplemental feed valve control | • | • | • |
| Pre filter rinse valve control | • | • | • |
| Tank drain valve control | • | • | • |
| Incoming water supply valve status | • | • | • |
| 3-way valve control | • | • | • |
| Pump pressure | • | • | |
| Second tank level control | • | • | |
| Filter differential pressure monitoring | • | • | |
| ACF flush valve control | • | • | |
| ACF flush valve status | • | • | |
